Wireshark — A Walkthrough Of The Best Packet Analyzer In The World

Hacking 101 Tools

Wireshark is the best network traffic analyzer and packet sniffer around. In this article, we will look at Wireshark in detail.

Wireshark is a network analyzer that lets you see what’s happening on your network. Wireshark lets you dissect your network packets at a microscopic level, giving you in-depth information on individual packets.

Wireshark was first released in 1998. It was called Ethereal back then. Wireshark can run on all major operating systems. Most enterprises and government organizations now prefer Wireshark as their standard network analyzer.

Wireshark is also completely open-source, thanks to the community of network engineers around the world. While most security tools are CLI based, Wireshark comes with a fantastic user interface.

OSI Model

I am assuming you are new to networking, so we will go through some basics of the OSI model. This is important to understand the core functions of Wireshark.

The Open Systems Interconnection (OSI) model standardizes the way two or more devices connect with each other. The OSI Model segments network architecture into 7 layers: Application, Presentation, Session, Transport, Network, Datalink, and Physical.

Here is what each layer does:

  • Physical Layer — Responsible for the actual physical connection between devices. Data is transferred in the form of bits.
  • Data Link Layer- Makes sure the data is error-free. Data is transferred in frames.
  • Network Layer — Takes care of finding the best (and quickest) way to send the data. Sender’s and receiver’s IP addresses are added to the header at this layer.
  • Transport Layer — Acts as a bridge between the network and session layer. Uses protocols like TCP and UDP to send and receive data. Data at this layer is called a Segment.
  • Session Layer — Establishes and maintains a session between devices.
  • Presentation Layer — Data from segments are converted to a more human-friendly format here. Takes care of encryption and decryption.
  • Application Layer — The layer that interacts with the user. If you are using a browser, it is on the application layer.

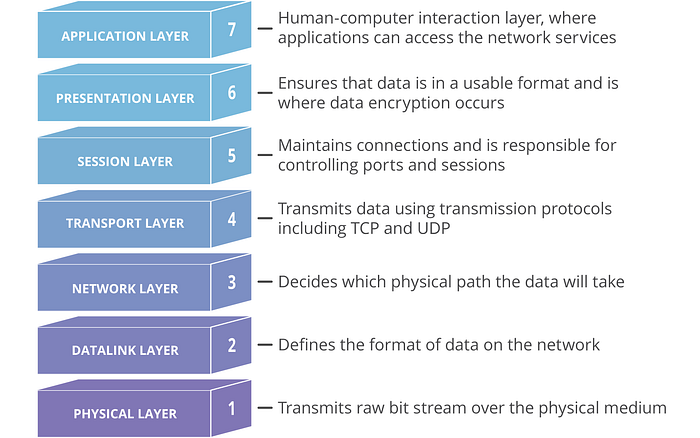

The below diagram should help you to understand how these components work together.

OSI Model Layers

If you are interested in learning more about the OSI model, here is a detailed article for you.


Now that you have a solid grasp of the OSI model, let’s look at network packets. When data is transferred from one computer to another, the data stream consists of smaller units called packets.

When you download a file from the internet, the data is sent from the server as packets. These packets are re-assembled by your computer to give you the original file.

IPV4 Packet

A packet can contain the following data:

  • source and destination IP addresses
  • protocol
  • source and destination ports
  • Data
  • Length, flags, TTL, etc.

Each packet contains valuable information about the devices involved in a packet transfer. Each data transfer involves thousands or even millions of these packets of data being sent between the source and the destination devices.

Now you would have understood the importance of Wireshark. Wireshark lets you capture each of these packets and inspect them for data.

Wireshark, to a network engineer, is similar to a microscope for a biologist. Wireshark lets you ‘listen’ to a live network (after you establish a connection to it), capture and inspect packets on the fly.

As a network engineer or ethical hacker, you can use Wireshark to debug and secure your networks. As a bad guy (which I don’t recommend), you can ‘sniff’ packets in the network and capture information like credit card transactions.

This is why it is unwise to connect to a public network like Starbucks and perform financial transactions or access private data. Even though sites with HTTPS can encrypt your packets, it is still visible over the network. If someone really wants to crack it, they can.

Wireshark Basics

Now let’s look at how you can play with Wireshark. Download and install Wireshark from here.

Wireshark has an awesome GUI, unlike most penetration testing tools. Here’s how Wireshark looks when you load it.

Wireshark lists out the networks you are connected to and you can choose one of them and start listening to the network.

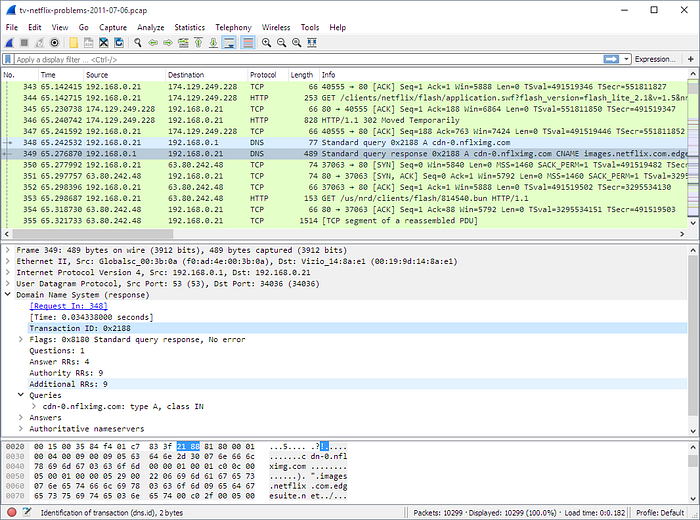

Wireshark UI

There are three panes in Wireshark.

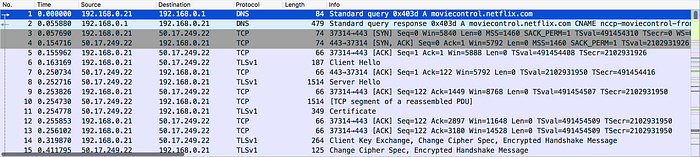

Packet List Pane

Packet List Pane

This pane displays the packets captured. Each line represents an individual packet that you can click and analyze in detail using the other two panes.

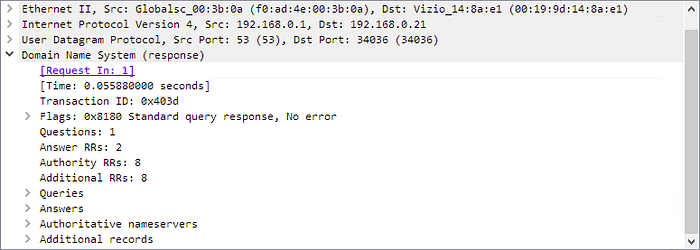

Packet Details Pane

Packet Details Pane

You can select a packet and then look at the packet information in more detail using the Packet Details pane. It displays information such as IP addresses, ports, and other information contained within the packet.

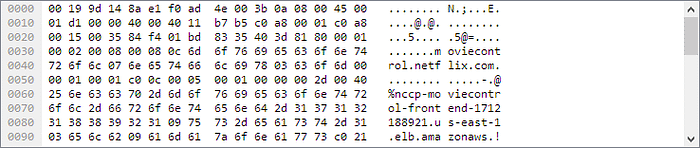

Packet Bytes Pane

Packet Bytes Pane

This pane gives the raw data of the selected packet in bytes. The data is displayed as a hex dump, which is displaying binary data in hexadecimal.


Wireshark has filters that help you to narrow down the type of data you are looking for. There are two main types of filters: Capture filter and Display filter.

Capture Filter

You can set a capture filter before starting to analyze a network. When you set a capture filter, it only captures the packets that match the capture filter.

For eg, if you only need to listen to the packets being sent and received from an IP address, you can set a capture filter as follows.


Once you set a capture filter, you cannot change it till the current capture session is completed.

Display Filters

Display filters are applied to capture packets. For example, if you want to display only the requests originating from a particular ip, you can apply a display filter as follows:


Since display filters are applied to captured data, they can be changed on the fly.

In short, capture filters enable you to filter the traffic while display filters apply those filters on the captured packets. Since Wireshark can capture hundreds of packets on a busy network, these are useful while debugging.

Core Features of Wireshark

Now that you have a good grasp of Wireshark basics, lets look at some core features. With Wireshark, you can:

  • Identify security threats and malicious activity on a network
  • Observe network traffic for debugging complex networks
  • Filter traffic based on protocols, ports and other parameters
  • Capture packets and save it to a Pcap file for offline analysis
  • Apply coloring rules to the packet list for better analysis
  • Export captured data to XML, CSV, or plain text file.


Wireshark is always ranked among the top 10 network security tools every year. With its simple yet powerful user interface, Wireshark is easy to learn and work with. It is a valuable asset in every penetration tester’s toolkit.

Hope this article helped you to get a solid grasp of Wireshark.
